Coated Hydrophilic Aluminium Foil Roll / Fin Stock For Air Conditioner

Basic Information
Place of Origin: China
Brand Name: Trumony
Certification: ISO9001, ASTM, JIS, GB, EN, ASTMB
Model Number: TR
Minimum Order Quantity: 3 tons
Price: Negotiable
Packaging Details: Standard Wooden Export Package
Delivery Time: 30 workdays after confirming
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 800,000 Tons Per Year
Alloy: A8011, A1100, A1200, A3102, A3003 Temper: O, H22, H24, H26, H18
Thickness: 0.08~0.3mm Width: 60~1440mm
Treatment: Coated Sample: Free Within 1KG
I.D: 75mm, 150mm, 200mm, 300mm, Etc. Usage: Air Conditioner
Color: According To Customers' Requirement HS Code: 76071900
High Light:

aluminium foil roll

,

aluminum sheet metal roll



Company Profile:



Trumony aluminum Co., Ltd is one of the global leading and most specialized suppliers of aluminum products. Our company can produce bare foil, and Hydrophilic Foil with colors such as blue, gold, white, etc. The product quality can reach the top level in both domestic and abroad industry. It mainly applied for household air conditioner, refrigerator, auto AC, auto water tank, etc.



Products description:



The Hydrophilic Foil has a layer coating material, which has the performance of high corrosion resistance. It can be used in a variety of heat exchange constructions where the basic function is to efficiently transfer heat. Also this fin foil can be used for evaporator and condenser in most residential, automotive, and commercial air conditioning units and in humidifiers and other equipment.

TRUMONY color coated aluminium foil combines all advantages of modern coil-coating technology in our full-automatic production line. Our company can produce aluminium coil used for aluminium/plastic composite panel, and the base material for color coated aluminium coil. The aluminium substrate gets degreased , chemically pre-treated and coated in a single production step which resulting in a high-quality uniform coating reproducible at any time and a material which has been developed for easy processing for a variety of application.

By changing the alloy, we have achieved on the basis of ensuring the fin formability and strength, the thickness of the fin is reduced. And then it can reduce the volume of equipment and improve heat transfer efficiency.



performance:

1, Film thickness / 1.0-2.0µm (Single side average thickness)
2, Hydrophobic /Primary contact angle 10° / Continuous contact angle 20°
3, Adherence strength Erich-sen test(pressed depth 5mm), no peeling off
4, Corrosion resistance /Salt&Spray (72 hours) R.N?9.5
5, Alkali resistance/ Dipped in 20% Na-OH under 20°C for 3 minutes. absolutely no blister.
6, Impregnable resistance / Sample weight loss?1%
7, Heat resistance/ Under 200°C keep 5 minutes, performance and color unchanged; Under 300°C keep 5 minutes, coating film become a bit yellow
8, Oil proof/ Dipped in volatile oil for 24 hours, no blister on the coating layer
9, Coating film odor/ No stranger odor
10, Abrasion to mold / Same as ordinary aluminium foil



Advantages:

- High temperature resistant
- Weathering resistant
- Scrubbing resistant
- Sound insulation
- Acid or alkali proof
- Fireproof
- Light weight material is easy to construct and install
- Bright colors
- Easy molding process,not rusting etc.



Usages



1.Mainly for fin stock, air conditioner.
2. Widely used in insulation board
3. Aluminum curtain wall
4. Aluminum-magnesium-manganese roofing system
5. Aluminum ceiling
6. Acp and many other areas
7. Lighting,
8.Printing,
9.Packing,
10.Decorative,
11.Electronics surface,
12.Hot rolled thick plate,
13.PS base plate,
14.Aluminum plastic base plate,
15.Aluminum curtain wall base plate,
16.Aluminum composite panel base plate,
17.Aluminum spacer,
18.Aluminum embossed sheet,
19.Aluminum tread plate



Alloy Code Temper Tensile Strength Rm(MPa) Yield Strength Rp0.2 (MPa) Extend Ratio A50 (%)
8011 O 60~100 ≥45 ≥20
8011 H22 70~110 ≥55 ≥18
3003 H24 140~185 ≥125 ≥3.0
5052 H32 185~225 ≥160 ≥1.0
1060 O 60~95 ≥35 ≥15
1145 H24 95~135 ≥55 ≥4
3A21 H14 135~185 ≥125 ≥3

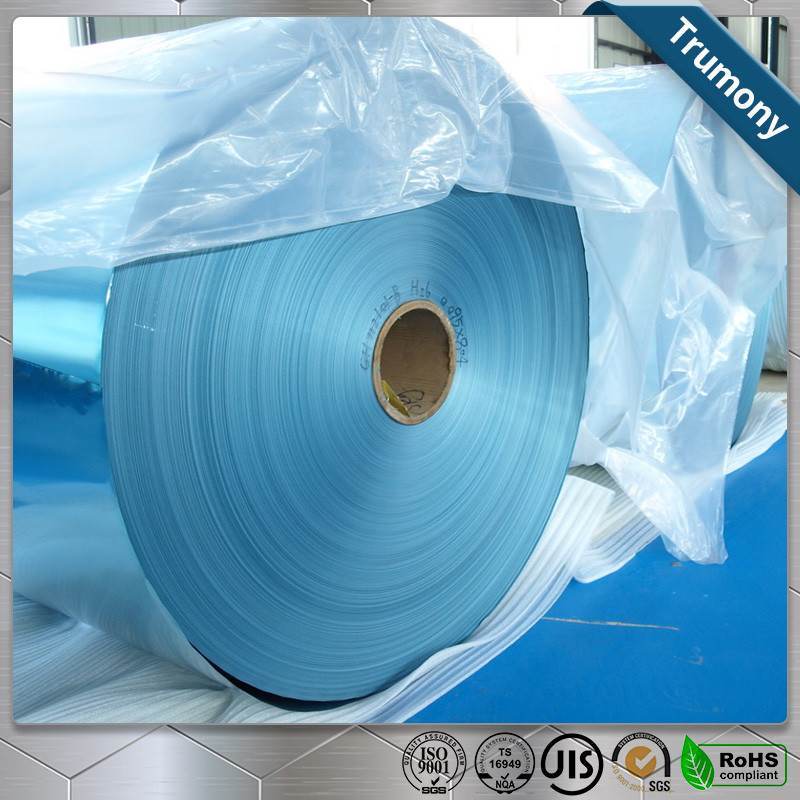

Coated Hydrophilic Aluminium Foil Roll / Fin Stock For Air Conditioner 0

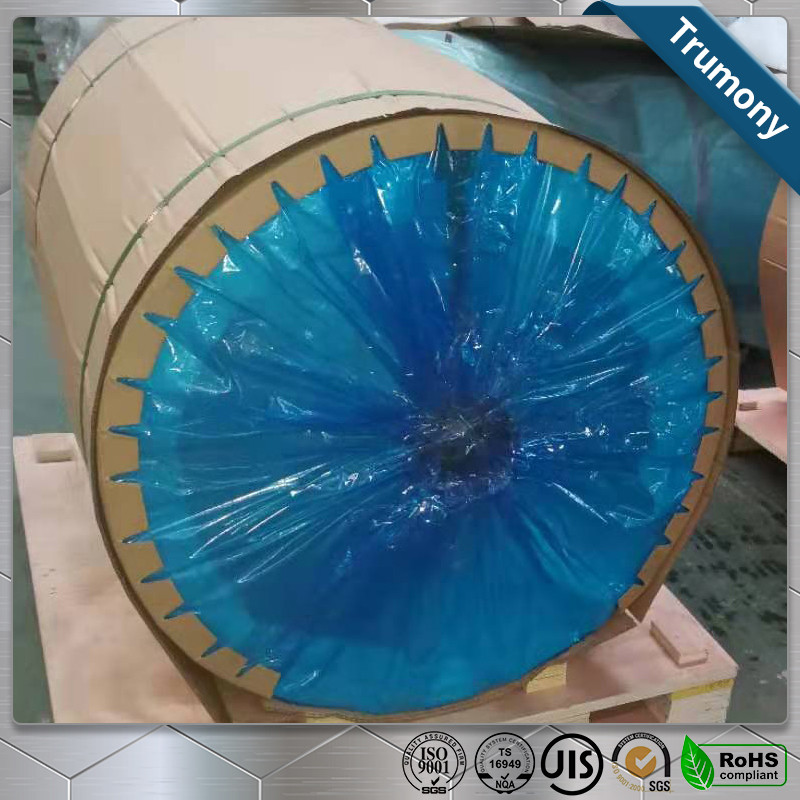

Coated Hydrophilic Aluminium Foil Roll / Fin Stock For Air Conditioner 1
