| Place of Origin: | China |
|---|---|
| Brand Name: | Trumony |
| Certification: | ISO9001, ASTM, JIS, GB, EN, ASTMB |
| Model Number: | TR |
| Minimum Order Quantity: | 3 tons |
| Price: | Negotiable |
| Packaging Details: | Standard Wooden Export Package |
| Delivery Time: | 30 workdays after confirming |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 800,000 Tons Per Year |
| Alloy Code: | According The Requests | Temper: | O ~ H112, T6~T7751 |
|---|---|---|---|
| Thickness: | 0.5~250 Mm | Width: | ≥ 1800 Mm |
| Length: | ≥ 6000 Mm | Surface Treatment: | According To The Requests |
| Usage: | Automobile, Ship, Airplane, High Speed Railway, Car Tank, Etc | Color: | According To Request |
| High Light: | Power Sprayed Freezer 7075 Aluminum Plate,7075 Aluminum Plate 250mm,7075 aluminum sheet ASTMB |
||

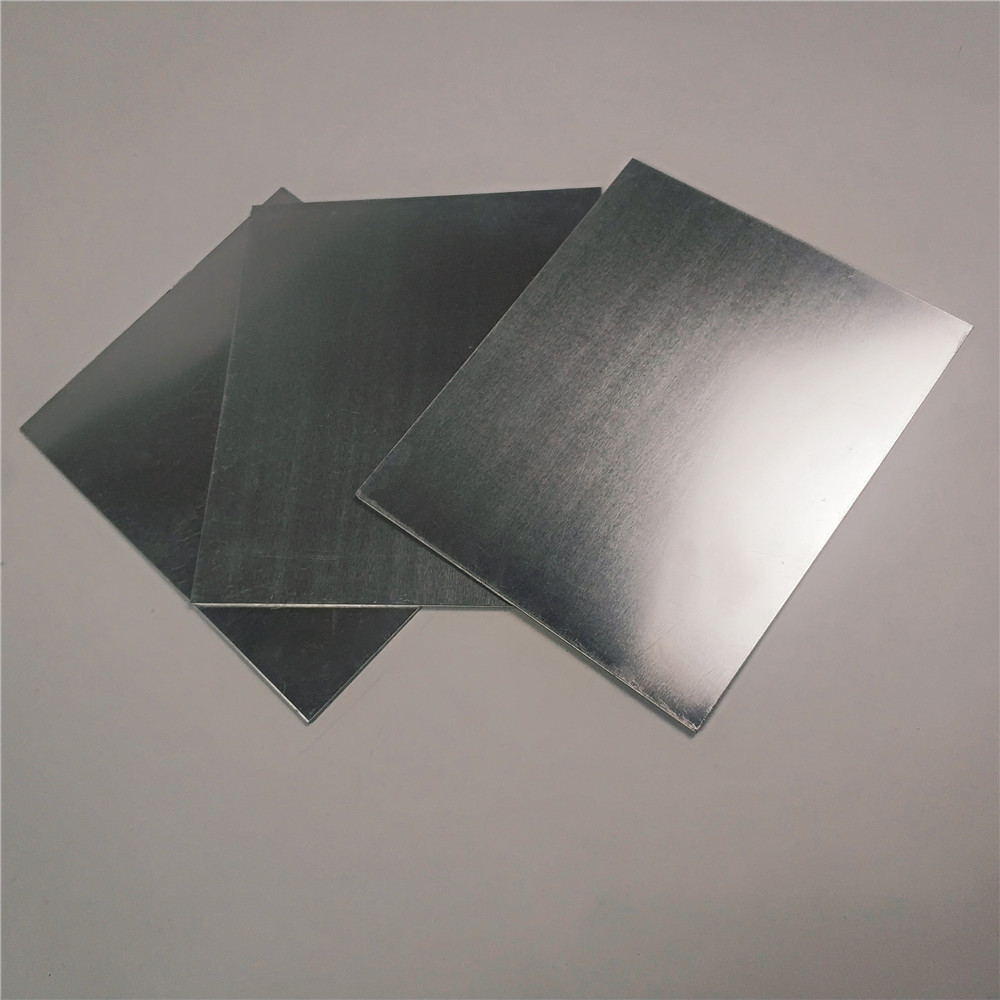

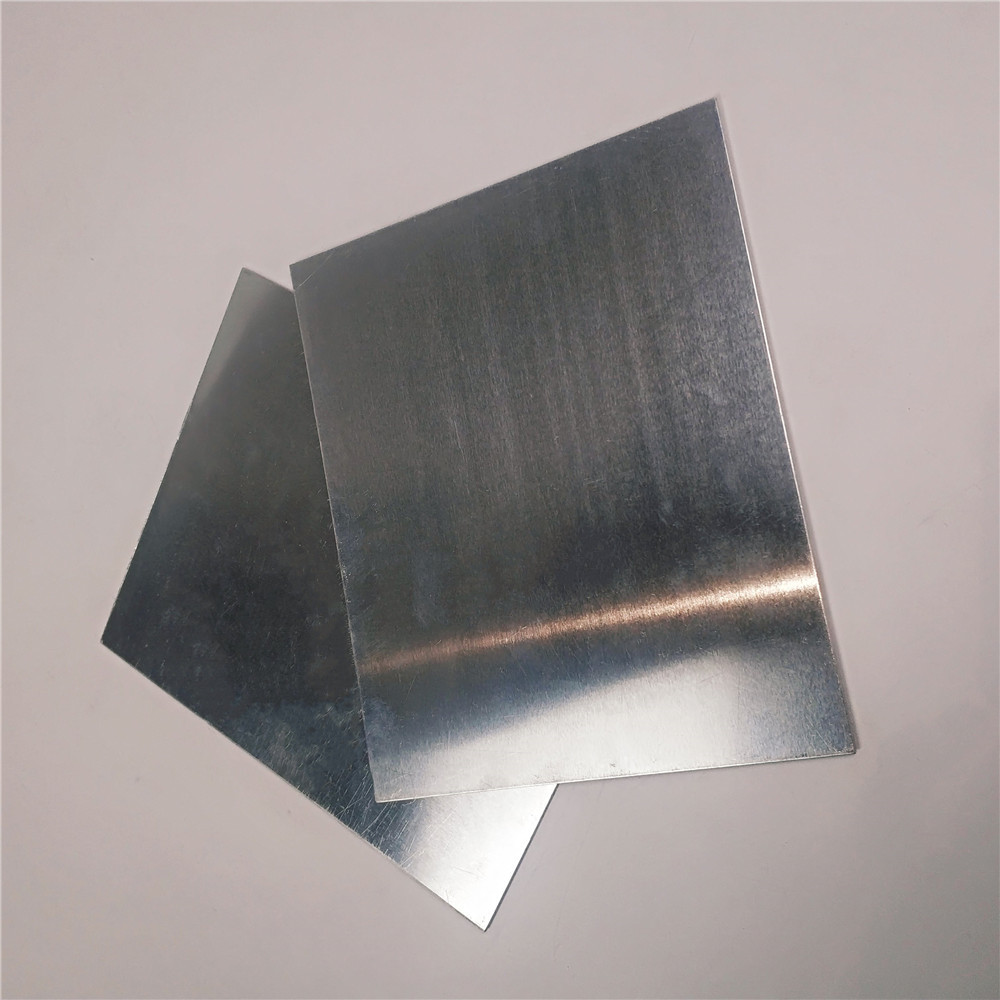

7075 Power Sprayed Freezer Medical Industry Aluminium Flat Plate
Our Advantage
Trumony Aluminum Limited was established in 2006. We're dedicate to heat exchange industry and provide full set of solution for heat exchanger. The product has been sent to North America, Latin America, Europe, Middle east, South Asia etc serving well each client.
Aluminium Plate Details
Plate Thickness(mm): 0.5mm-10mm
Width(mm): 500mm-2000mm
Length(mm): 1000mm-8000mm
Feature:
-Light weight, high strength, superior impact resistance,
-excellent surface flatness and smoothness ,
-heat insulation, sound insulation, fire-resistance,
-can be easily processed and fabricated, quickly installed,
-elegant and magnificent, good flexibility fits various designs,
-easily maintenance
Applications:
-They can be used for constructional exterior curtain walls;
-They can be used for decorative renovation of storey-added old buildings;
-They can be used for wallboard and ceilings of tunnels;
-The raw materials in industrial purpose;
-Materials used for vehicle and boat.
Mechanical Properties
|
Alloy |
Temper |
Typical Thickness |
Tensile Strength Rm(Mpa) |
Yield Strength Rp0.2(Mpa) |
Elongation(%) |
|
7075 |
T651 |
6.0~225.0 |
570 |
495 |
10 |
|
7075 |
T7351 |
6.0~150.0 |
500 |
420 |
10 |
|
7475 |
T7651 |
6.0~50.0 |
510 |
435 |
10 |
|
7050 |
T7451 |
6.0~225.0 |
530 |
460 |
10 |
|
7050 |
T7651 |
6.0~100.0 |
550 |
480 |
10 |
|
7B50 |
T6151 |
6.0~50.0 |
600 |
550 |
12 |
|
7B50 |
T7751 |
6.0~100.0 |
590 |
540 |
10 |
|
7A55 |
T7751 |
6.0~50.0 |
635 |
605 |
10 |
Chemical Composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Zr |
Ti |
|
7075 |
0.40 |
0.50 |
1.2-2.0 |
0.30 |
2.1-2.9 |
0.18-0.28 |
5.1-6.1 |
0.05 |
0.20 |
Commercial terms
|
Minimum Order Quantity: |
5 metric tons |
|
Price: |
negotiation |
|
Payment Terms: |
T/T or LC |
|
Supply Ability: |
50,000 mt per year |
|
Delivery Time: |
30 working days after received your down payment |
|
Packaging Details: |
Standard export packaging |
